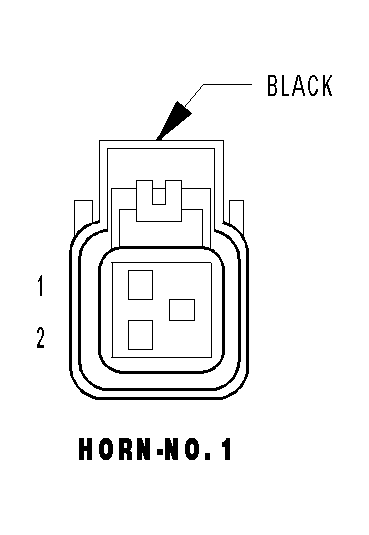

Horn 1 Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

HORN-NO. 1 - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z384 18BK	GROUND
2	X2 18DG/OR	HORN RELAY OUTPUT
