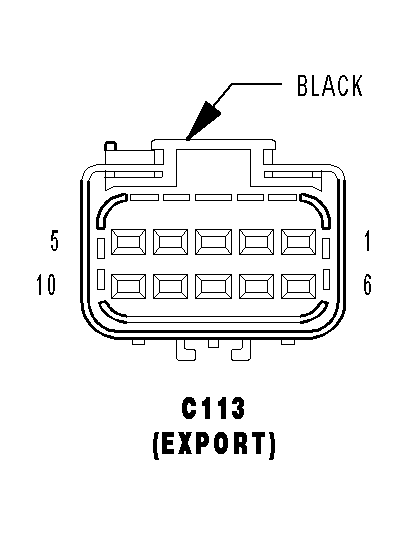

Headlamp And Dash Side Inline (Export) Connector End View (C113)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C113 (EXPORT) - BLACK (HEADLAMP AND DASH SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	D702 20WT/YL
2	D705 20WT/OR
3	D706 20WT/TN
4	D707 20WT/LG
5	D708 20WT/LB
6	D709 20WT/BR
7	X702 20GY/LB
8	Z169 20BK/LG
9	-
10	-
