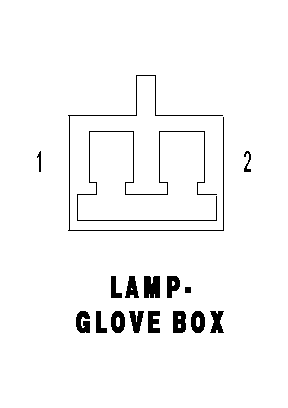

Glove Box Lamp Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

LAMP-GLOVE BOX - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A931 20RD	FUSED B(+)
2	M28 20YL/TN	GLOVE BOX LAMP DRIVER
