Generator (Gas) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

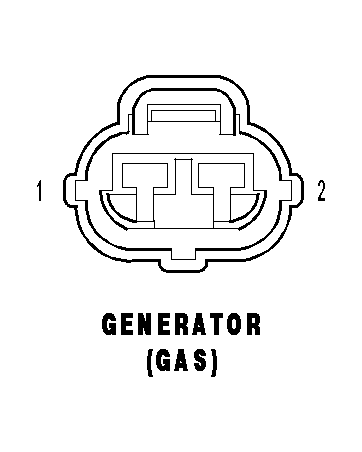

GENERATOR (GAS) - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K125 16BR/DG |
GEN FIELD CONTROL |
| 2 |
Z385 18BK |
GROUND |

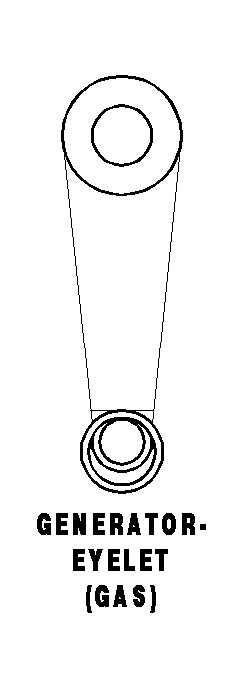

GENERATOR-EYELET (GAS) - 1 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A11 06BR/RD |
FUSED B(+) |
