Fuel Pump Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

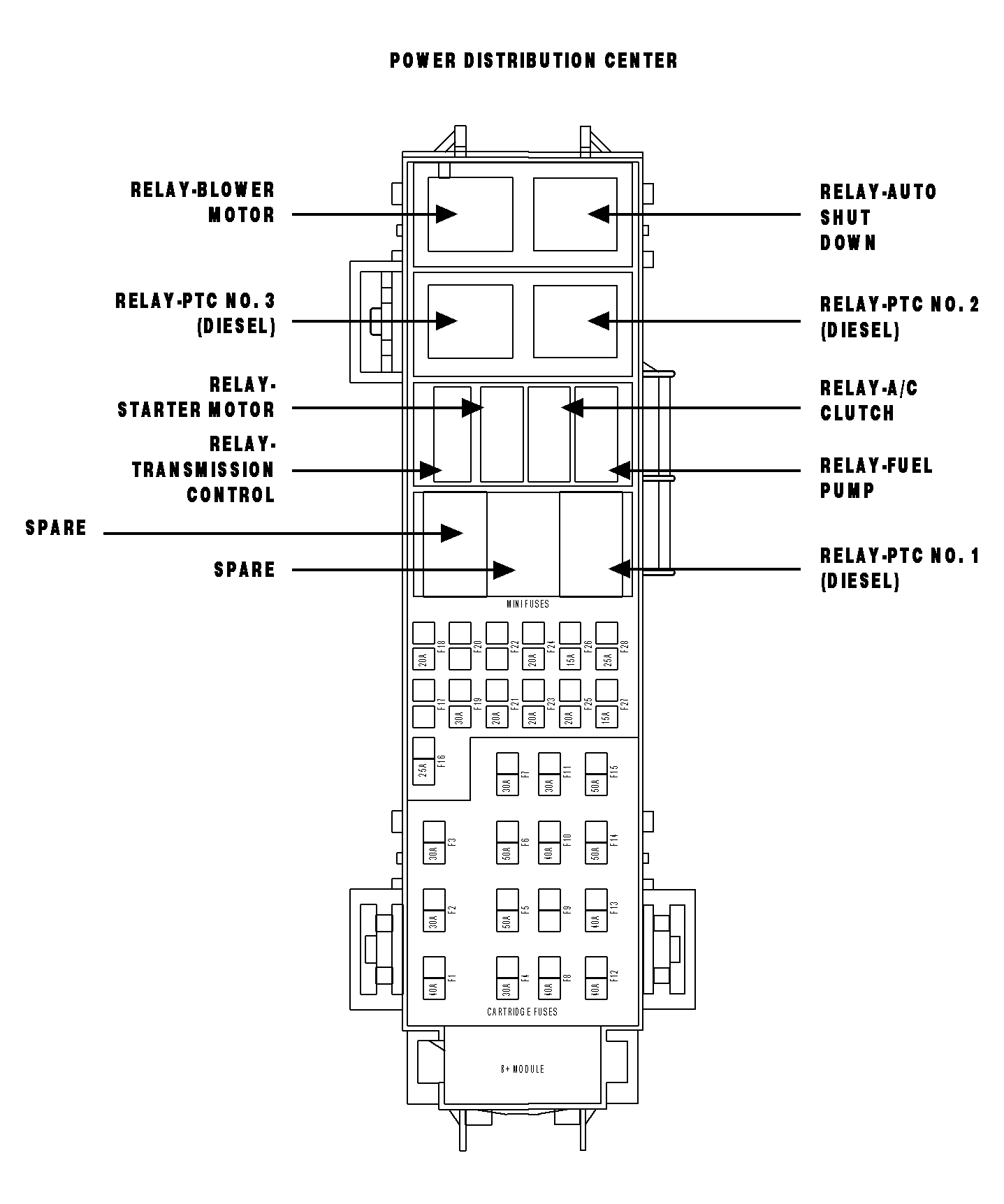

RELAY-FUEL PUMP
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A916 16RD |
FUSED B(+) |
| 85 |
K31 20BR |
FUEL PUMP RELAY CONTROL |
| 85 |
A15 16RD/TN (DIESEL) |
FUSED ASD RELAY OUTPUT |
| 86 |
F942 20PK/LG (GAS) |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 87 |
A109 16OR/RD |
FUEL PUMP RELAY OUTPUT |
| 87A |
- |
- |
