Fuel Pump Motor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

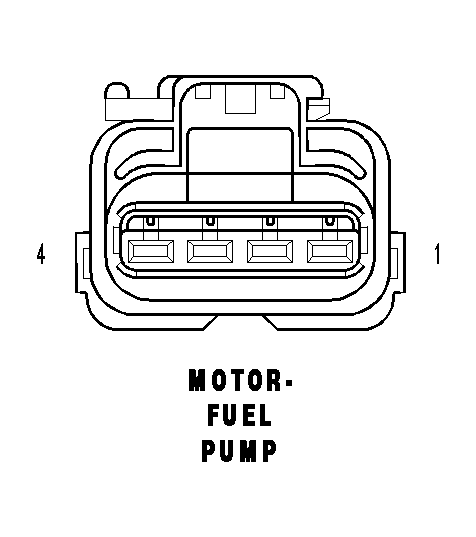

MOTOR-FUEL PUMP - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z912 18BK |
GROUND |
| 2 |
Z210 20BK |
GROUND |
| 3 |
N4 20DB/YL |
FUEL LEVEL SENSOR NO. 1 SIGNAL |
| 4 |
A109 16TN/RD |
FUEL PUMP RELAY OUTPUT |
