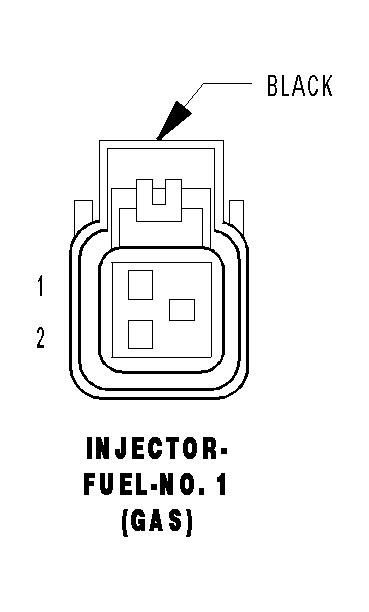

Fuel Injector 1 (Gas) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

INJECTOR-FUEL-NO. 1 (GAS) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K11 16BR/YL	INJECTOR CONTROL NO. 1
2	F42 16DG/LG	FUSED ASD RELAY OUTPUT
