Front Park Display Module (Front Park Assist) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

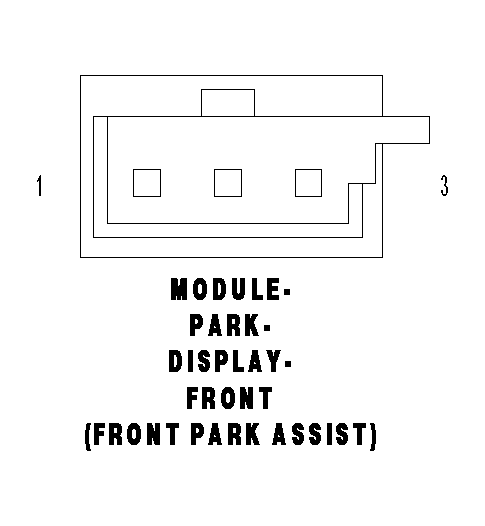

MODULE-PARK-DISPLAY-FRONT (FRONT PARK ASSIST) - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X778 20GY/DB |
PARK ASSIST DISPLAY COMMUNICATION FEED |
| 2 |
Z172 20BK/OR |
GROUND |
| 3 |
D778 20WT/OR |
FRONT PARK ASSIST DISPLAY SIGNAL |
