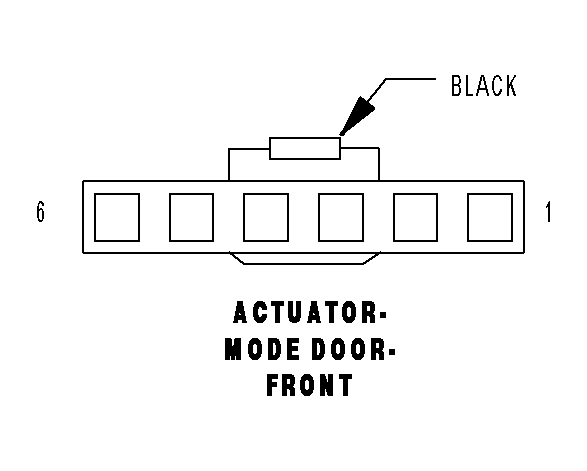

Front Mode Door Actuator Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

ACTUATOR-MODE DOOR-FRONT - BLACK 6 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	-	-
4	-	-
5	C266 20DB/WT	FRONT MODE DOOR DRIVER
6	C66 20DB/LB	FRONT MODE DOOR COMMON DRIVER
