Front Fog Lamp Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

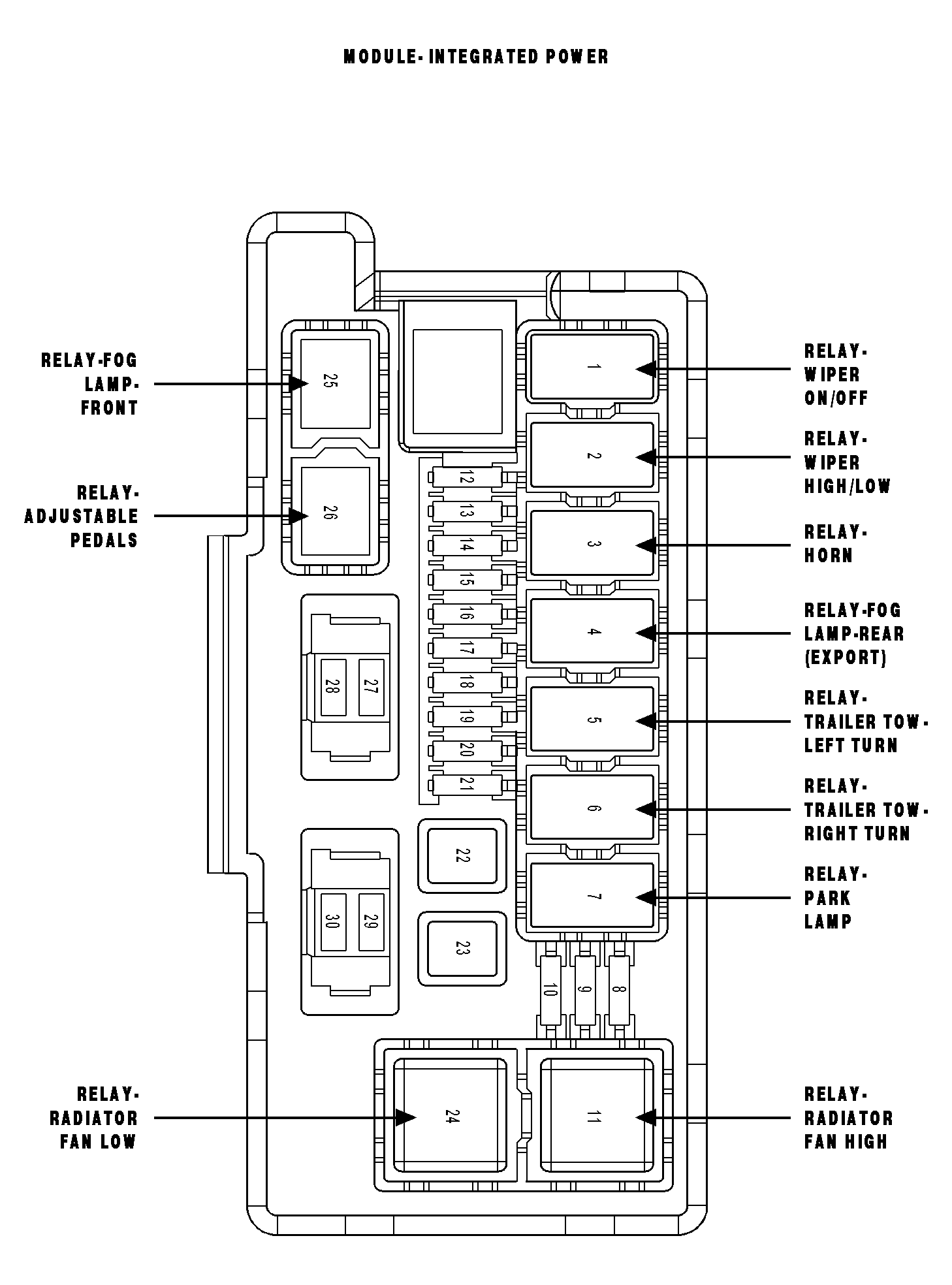

RELAY-FOG LAMP-FRONT
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A39 18RD/LG |
FUSED B(+) |
| 85 |
L139 20WT/YL |
FRONT FOG LAMP RELAY CONTROL |
| 86 |
A39 18RD/LG |
FUSED B(+) |
| 87 |
L89 18WT/YL |
FRONT FOG LAMP RELAY OUTPUT |
| 87A |
- |
- |
