Section 588 (Connector End Views)
>>
Connector Pin-Outs
>>
Front Differential Solenoid Connector End View
Front Differential Solenoid Connector End View
WARNING:
This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

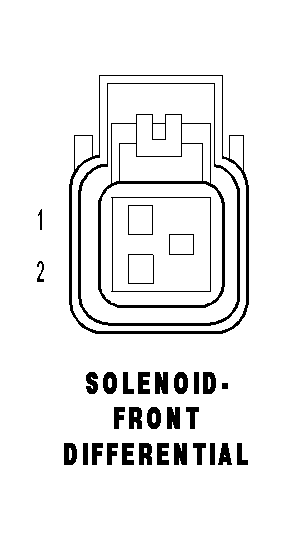

SOLENOID-FRONT DIFFERENTIAL - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T301 20DG/YL
SWITCHED BATTERY SOLENOID SUPPLY
2
T306 20DG/DB
FRONT DIFFERENTIAL SOLENOID CONTROL
