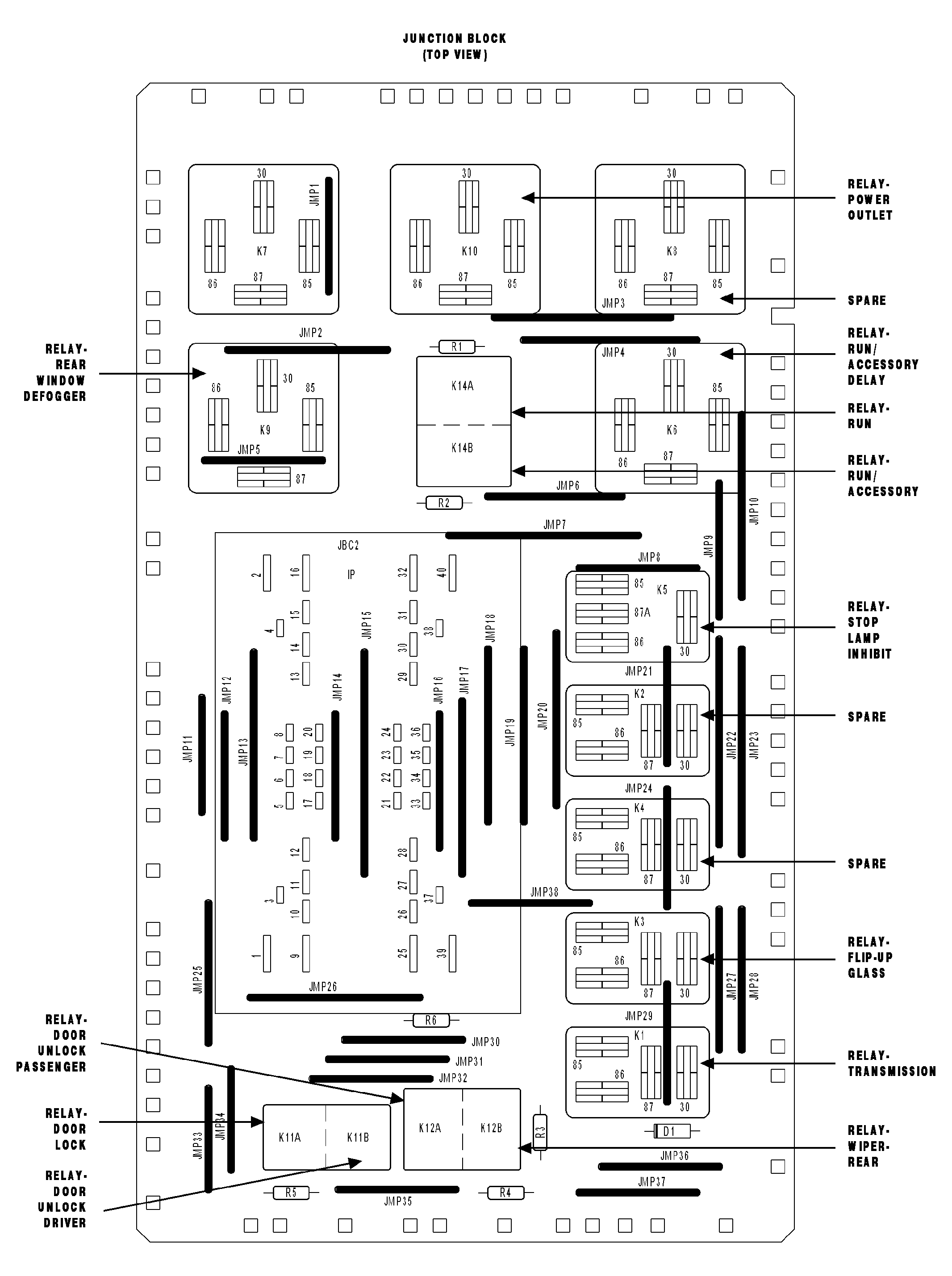

Flip Up Glass Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RELAY-FLIP-UP GLASS
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A933 18RD |
FUSED B(+) |
| 85 |
Q82 20LG/OR |
FLIP-UP GLASS RELAY CONTROL |
| 86 |
A933 18RD |
FUSED B(+) |
| 87 |
Q81 18OR/GY |
FLIP-UP GLASS RELAY OUTPUT |
| 87A |
- |
- |
