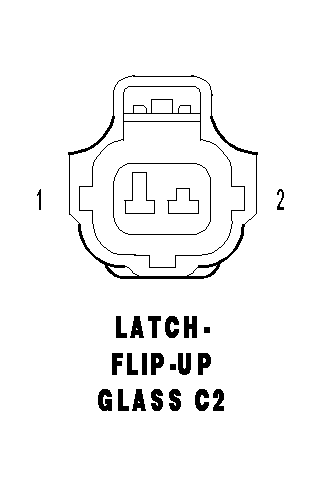

Flip Up Glass Latch Connector End View (C2)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

LATCH-FLIP-UP GLASS C2 - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z800 18BK	GROUND
2	G80 20VT/BR	FLIP-UP GLASS AJAR SWITCH SENSE
