Fan Condenser Cooling Module (3.7L/4.7L) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

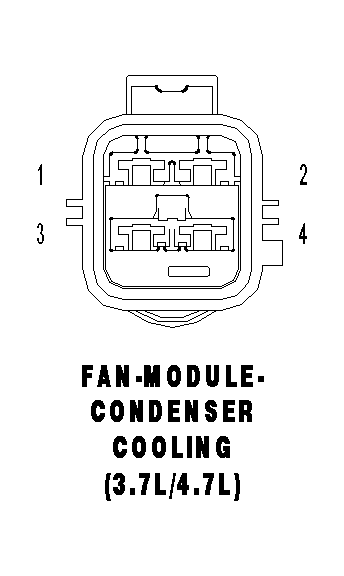

FAN MODULE-CONDENSER COOLING (3.7L/4.7L) - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
N24 10DG/DB |
LOW SPEED RADIATOR FAN RELAY OUTPUT |
| 2 |
Z823 12BK/DG |
GROUND |
| 3 |
N23 10DB/DG |
HIGH SPEED RADIATOR FAN RELAY OUTPUT |
| 4 |
- |
- |
