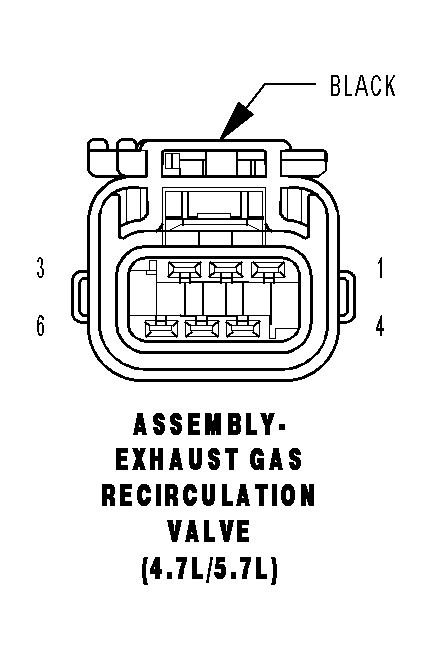

Exhaust Gas Recirculation Valve Assembly (4.7L/5.7L) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
ASSEMBLY-EXHAUST GAS RECIRCULATION VALVE (4.7L/5.7L) - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K34 20DB/LG |
EGR SIGNAL |
| 2 |
F856 20YL/PK |
5 VOLT SUPPLY |
| 3 |
K900 20DB/DG |
SENSOR GROUND |
| 4 |
Z42 20BK/LG |
GROUND |
| 5 |
- |
- |
| 6 |
K35 20DB/VT |
EGR SOL CONTROL |
