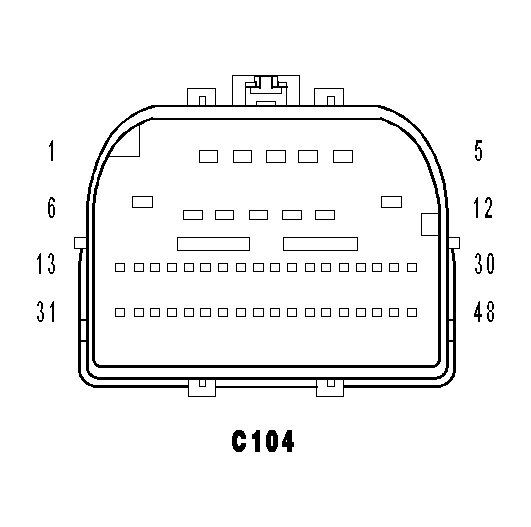

Engine Side Inline Connector End View (C104)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C104 - (ENGINE SIDE)
| CAV | CIRCUIT |
| 1 | T16 16YL/OR (4.7L/5.7L) |
| 2 | Z903 16BK (4.7L/5.7L) |
| 3 | F42 16DG/LG (GAS) |
| 4 | Z816 16BK (GAS) |
| 5 | Z130 16BK/BR (GAS) |
| 6 | A15 16RD/TN |
| 7 | K107 20VT/WT (GAS) |
| 8 | F26 18PK/OR (GAS) |
| 9 | V72 20OR/VT (5.7L) |
| 10 | K342 20BR/WT (GAS) |
| 11 | T15 20YL/BR (4.7L/5.7L) |
| 12 | K125 16BR/DG (GAS) |
| 13 | D64 20WT/LB (GAS) |
| 14 | D65 20WT/LG (GAS) |
| 15 | C3 18DB/YL (GAS) |
| 16 | T71 20YL/OR (3.7L/DIESEL) |
| 16 | D15 20BR/WT (4.7L/5.7L) |
| 17 | D16 20WT/OR (4.7L/5.7L) |
| 18 | K400 20BR/VT (5.7L) |
| 19 | V32 20VT/YL (3.7L/4.7L) |
| 19 | K29 20WT/BR (5.7L) |
| 20 | K900 20DB/DG (GAS) |
| 21 | D118 20LG/WT (GAS) |
| 22 | D223 20WT/VT (GAS) |
| 23 | V71 20VT/OR (GAS) |
| 24 | F942 20PK/LG (GAS) |
| 25 | K31 20BR (GAS) |
| 26 | V937 20VT/BR (GAS) |
| 27 | K106 20VT/LB (GAS) |
| 28 | A209 18RD (GAS) |
| 29 | T76 20YL/TN (3.7L) |
| 29 | T5 20DG/YL (4.7L/5.7L) |
| 30 | T74 18YL/LG (3.7L) |
| 30 | T6 20DG (4.7L/5.7L) |
| 31 | Z153 18BK/GY (GAS) |
| 32 | T75 18YL/LB (3.7L) |
| 32 | F856 20YL/PK (5.7L) |
| 33 | T60 18DG/BK (3.7L) |
| 33 | F855 20PK/YL (5.7L) |
| 34 | T73 18YL/GY (3.7L) |
| 34 | B16 20LB/DG (5.7L) |
| 35 | T72 20YL/DB (3.7L) |
| 36 | T77 20YL/BR (3.7L) |
| 36 | K167 20BR/YL (5.7L) |
| 37 | T70 20YL (3.7L) |
| 38 | T78 18YL (3.7L) |
| 38 | K23 20BR/WT (5.7L) |
| 39 | T13 20DG/VT (3.7L) |
| 40 | T752 20DG/OR (GAS) |
| 41 | Z42 16BK/LG (GAS) |
| 42 | V36 20VT/YL (3.7L/4.7L) |
| 43 | T54 20DG/WT (3.7L) |
| 43 | F1 18PK/WT (4.7L/5.7L) |
| 44 | K70 20DB/BR (GAS) |
| 45 | K52 20DB/YL (GAS) |
| 46 | V35 20VT/OR (3.7L/4.7L) |
| 47 | B15 20DG/WT (GAS) |
| 48 | C13 20LB/OR (GAS) |
