Engine Side Inline (5.7L) Connector End View (C112)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

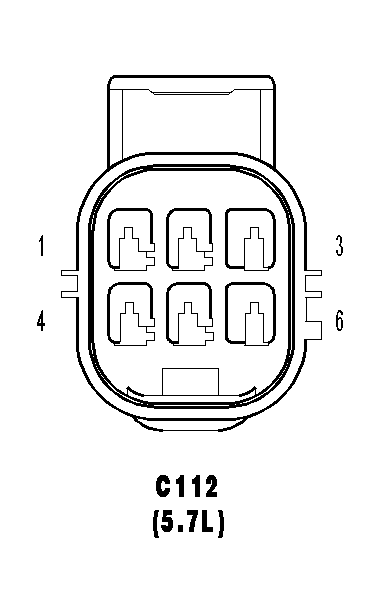

C112 (5.7L) - (ENGINE SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	K451 18BR/WT
2	K452 18BR/LB
3	K453 18BR/DG
4	K454 18BR/OR
5	-
6	Z42 20BK/LG
