Driver Window Switch/Door Lock Switch Connector End View (C1)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

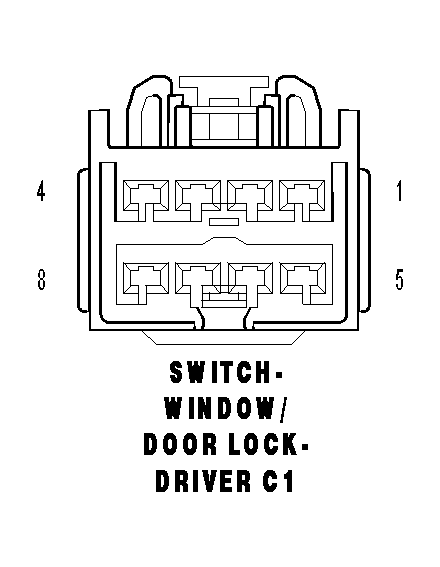

SWITCH-WINDOW/DOOR LOCK-DRIVER C1 - 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | A929 16RD/DB | FUSED RUN/ACCESSORY RELAY OUTPUT |
| 3 | Z463 20BK/LB (EXCEPT MEMORY) | DOOR LOCK SWITCH RETURN |
| 3 | G775 20OR/VT (MEMORY) | DRIVER DOOR LOCK SWITCH RETURN |
| 4 | Z911 16BK | GROUND |
| 5 | Q15 16OR/LB | WINDOW LOCK OUT SWITCH OUTPUT |
| 6 | Q21 16OR/WT | DRIVER WINDOW DRIVER (DOWN) |
| 7 | Q11 16OR/LG | DRIVER WINDOW DRIVER (UP) |
| 8 | G161 20VT/DG (LHD) | DRIVER DOOR LOCK SWITCH MUX |
| 8 | G160 20VT/BR (RHD) | PASSENGER DOOR LOCK SWITCH MUX |
