Driver Squib Airbag 2 Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

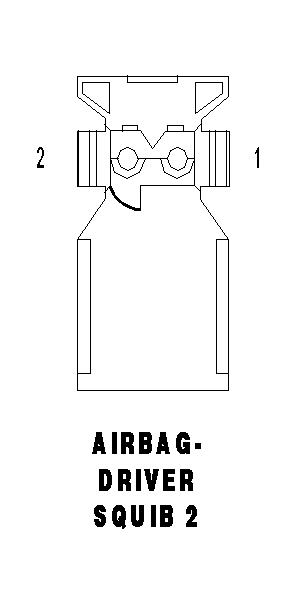

AIRBAG-DRIVER SQUIB 2 - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	R363 20LG/WT	DRIVER SQUIB 2 LINE 1
2	R361 20LG/VT	DRIVER SQUIB 2 LINE 2
