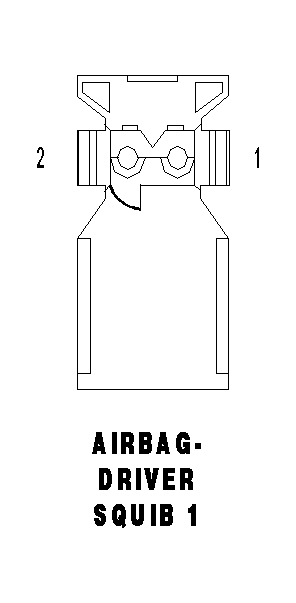

Driver Squib Airbag 1 Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

AIRBAG-DRIVER SQUIB 1 - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	R345 20LG/OR	DRIVER SQUIB 1 LINE 1
2	R343 20LG/BR	DRIVER SQUIB 1 LINE 2
