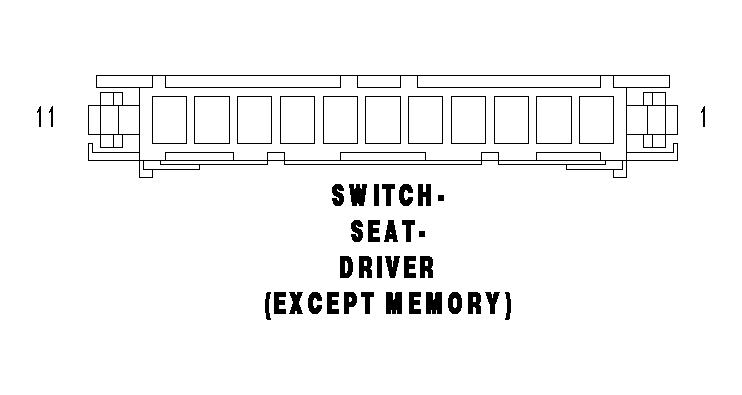

Driver Seat Switch (Except Memory) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SWITCH-SEAT-DRIVER (EXCEPT MEMORY) - 11 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P41 16LG/GY | DRIVER SEAT RECLINER DOWN DRIVER |
| 2 | - | - |
| 3 | P43 16LG/VT | DRIVER SEAT RECLINER UP DRIVER |
| 4 | P17 16LG/DG | DRIVER SEAT HORIZONTAL REARWARD DRIVER |
| 5 | P21 16LG/TN | DRIVER SEAT FRONT DOWN DRIVER |
| 6 | A33 16RD/YL | FUSED B(+) |
| 7 | Z911 14BK (EXCEPT HEATED SEATS) | GROUND |
| 7 | Z911 16BK (HEATED SEATS) | GROUND |
| 8 | P15 16LG/WT | DRIVER SEAT HORIZONTAL FORWARD DRIVER |
| 9 | P19 16LG/LB | DRIVER SEAT FRONT UP |
| 10 | P13 16LG/OR | DRIVER SEAT REAR RISER DOWN DRIVER |
| 11 | P11 16LG/YL | DRIVER SEAT REAR RISER UP DRIVER |
