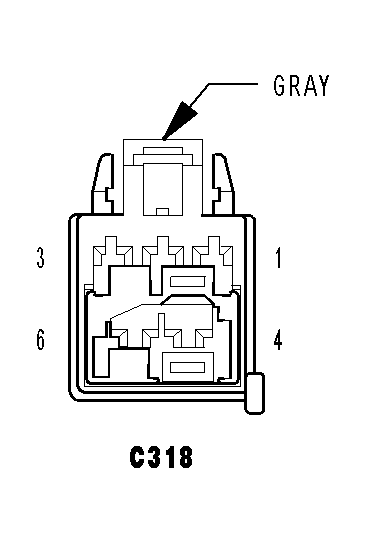

Driver Seat Jumper Side Inline Connector End View (C318)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C318 - GRAY (DRIVER SEAT JUMPER SIDE)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| 1 |
P141 16LG/BR |
| 2 |
P43 16LG/VT (EXCEPT MEMORY) |
| 2 |
P143 16LG/GY (MEMORY) |
| 3 |
G403 20VT/OR (MEMORY) |
| 4 |
G493 20OR/VT (MEMORY) |
| 5 |
P187 16LG/BR (HEATED SEATS) |
| 6 |
Z911 16BK (HEATED SEATS) |
