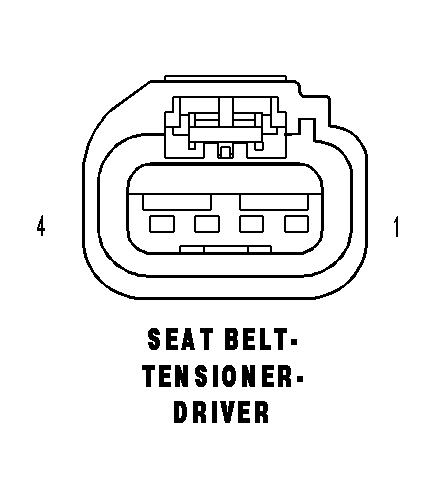

Driver Seat Belt Tensioner Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SEAT BELT-TENSIONER-DRIVER - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R55 20LG/DG |
DRIVER SEAT BELT TENSIONER LINE 1 |
| 2 |
R53 20LG/YL |
DRIVER SEAT BELT TENSIONER LINE 2 |
| 3 |
Z911 20BK |
GROUND |
| 4 |
G10 20VT/LG |
SEAT BELT SWITCH SENSE |
