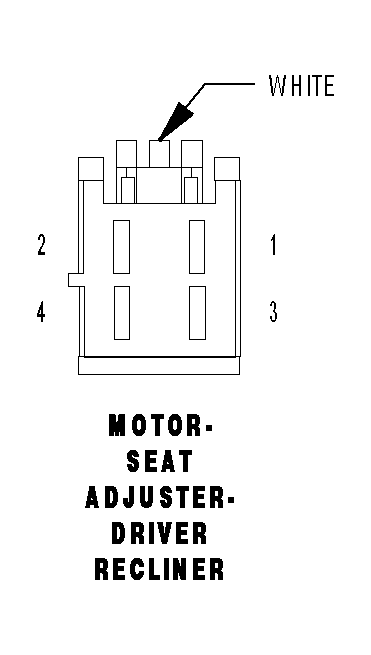

Driver Seat Adjuster Recliner Motor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MOTOR-SEAT ADJUSTER-DRIVER RECLINER - WHITE 4 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P43 16LG/VT (EXCEPT MEMORY SEATS) | DRIVER SEAT RECLINER UP DRIVER |
| 1 | P143 16LG/GY (MEMORY SEATS) | DRIVER SEAT RECLINER DOWN DRIVER |
| 2 | P41 16LG/GY (EXCEPT MEMORY SEATS) | DRIVER SEAT RECLINER DOWN DRIVER |
| 2 | P141 16LG/BR (MEMORY SEATS) | DRIVER SEAT RECLINER UP DRIVER |
| 3 | G493 20OR/VT | DRIVER SEAT RECLINER POSITION SENSOR GROUND |
| 4 | G403 20VT/OR | DRIVER SEAT RECLINER POSITION SENSE |
