Driver Seat Adjuster Horizontal Motor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

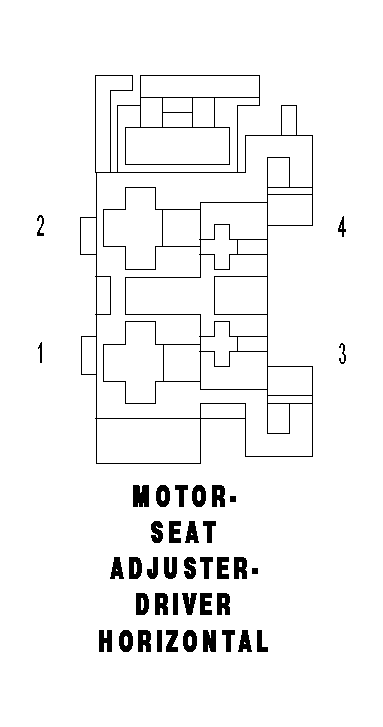

MOTOR-SEAT ADJUSTER-DRIVER HORIZONTAL - 4 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P15 16LG/WT (LHD EXCEPT MEMORY SEATS) | DRIVER SEAT HORIZONTAL FORWARD DRIVER |
| 1 | P115 16LG (LHD MEMORY SEATS) | DRIVER SEAT HORIZONTAL FORWARD DRIVER |
| 1 | P17 16LG/DG (RHD EXCEPT MEMORY SEATS) | DRIVER SEAT HORIZONTAL REARWARD DRIVER |
| 1 | P117 16LG/LB (RHD MEMORY SEATS) | DRIVER SEAT HORIZONTAL REARWARD DRIVER |
| 2 | P17 16LG/DG (LHD EXCEPT MEMORY SEATS) | DRIVER SEAT HORIZONTAL REARWARD DRIVER |
| 2 | P117 16LG/LB (LHD MEMORY SEATS) | DRIVER SEAT HORIZONTAL REARWARD DRIVER |
| 2 | P15 16LG/WT (RHD EXCEPT MEMORY SEATS) | DRIVER SEAT HORIZONTAL FORWARD DRIVER |
| 2 | P115 16LG (RHD MEMORY SEATS) | DRIVER SEAT HORIZONTAL FORWARD DRIVER |
| 3 | G491 20VT/GY | DRIVER SEAT HORIZONTAL SENSOR GROUND |
| 4 | G401 20VT/LG | DRIVER SEAT HORIZONTAL POSITION SENSE |
