Driver Outside Rearview Mirror Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

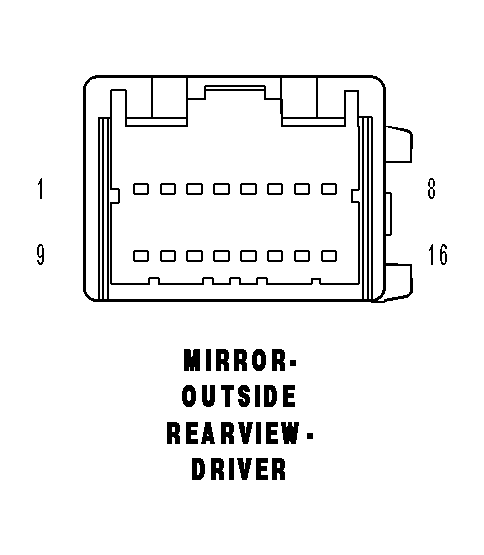

MIRROR-OUTSIDE REARVIEW-DRIVER - 16 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P71 20TN/DG | DRIVER MIRROR VERTICAL DRIVER |
| 2 | P75 20TN/LG | DRIVER MIRROR HORIZONTAL DRIVER |
| 3 | P76 20TN/LB (EXCEPT MEMORY MIRRORS) | MIRROR COMMON DRIVER |
| 3 | P73 20TN/VT (MEMORY MIRRORS) | DRIVER MIRROR COMMON DRIVER |
| 4 | P110 20LB/WT (FOLDING MIRRORS) | FOLDING MIRROR RETURN |
| 5 | P699 20LG/YL (FOLDING MIRRORS) | MIRROR-POWER FOLDING/UNFOLDING |
| 6 | C17 20 LB/WT (EXCEPT MEMORY MIRRORS) | FUSED REAR WINDOW DEFOGGER RELAY OUTPUT |
| 6 | C110 20DB/LB (MEMORY MIRRORS) | DRIVER MIRROR HEATER DRIVER |
| 7 | Z911 20 BK (EXCEPT MEMORY MIRRORS) | GROUND |
| 7 | C910 20DB/GY (MEMORY MIRRORS) | DRIVER MIRROR HEATER GROUND |
| 8 | P65 20TN/VT (MEMORY MIRRORS) | DRIVER MIRROR HORIZONTAL POSITION SIGNAL |
| 9 | P67 20TN/OR (MEMORY MIRRORS) | DRIVER MIRROR VERTICAL POSITION SIGNAL |
| 10 | P69 20TN/WT (MEMORY MIRRORS) | DRIVER MIRROR SENSOR GROUND |
| 11 | P669 20OR/LG (MEMORY MIRRORS) | DRIVER MIRROR SENSOR SUPPLY |
| 12 | P112 20TN/OR (MEMORY MIRRORS) | AUTO DAY/NIGHT MIRROR (+) |
| 13 | P114 20TN/WT (MEMORY MIRRORS) | AUTO DAY/NIGHT MIRROR (-) |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
