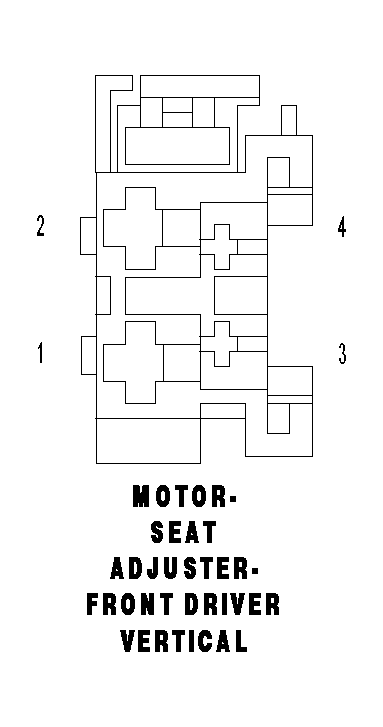

Driver Front Seat Adjuster Vertical Motor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MOTOR-SEAT ADJUSTER-FRONT DRIVER VERTICAL - 4 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P21 16LG/TN (EXCEPT MEMORY) | DRIVER SEAT FRONT DOWN DRIVER |
| 1 | P121 16LG/DB (MEMORY) | DRIVER SEAT FRONT VERTICAL DOWN DRIVER |
| 2 | P19 16LG/LB (EXCEPT MEMORY) | DRIVER SEAT FRONT UP DRIVER |
| 2 | P119 16LG/DG (MEMORY) | DRIVER SEAT FRONT VERTICAL UP DRIVER |
| 3 | G494 20YL/VT | DRIVER SEAT FRONT VERTICAL SENSOR GROUND |
| 4 | G404 20VT/YL | DRIVER SEAT FRONT VERTICAL POSITION SENSE |
