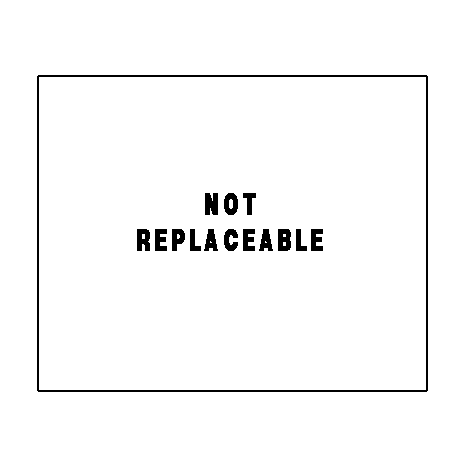

Driver Door Unlock Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RELAY-DOOR UNLOCK-DRIVER
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| - |
P701 |
DRIVER DOOR UNLOCK RELAY OUTPUT |
| - |
P1 |
DRIVER DOOR UNLOCK RELAY CONTROL |
| - |
A905 |
FUSED B(+) |
| - |
A213 |
FUSED B(+) |
| - |
Z387 |
GROUND |
