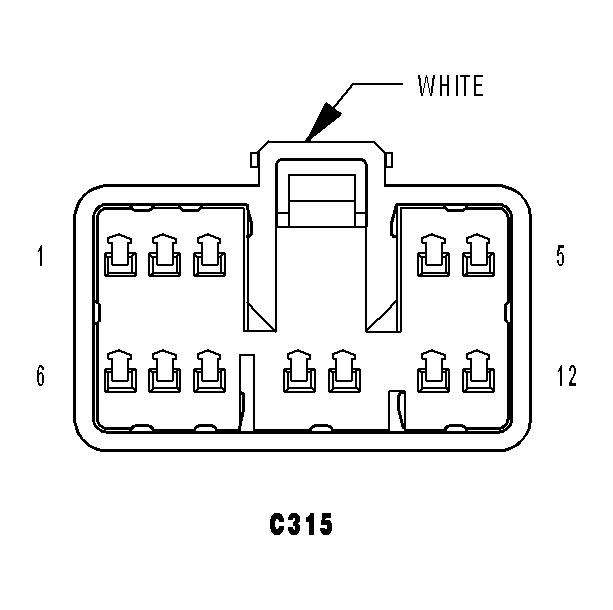

Driver Door Side Inline Connector End View (C315)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C315 - WHITE (DRIVER DOOR SIDE)
| CAV | CIRCUIT |
| 1 | P72 20TN/GY (EXCEPT VTSS) |
| 2 | P76 20TN/LB (EXCEPT VTSS) |
| 3 | P74 20TN/OR (EXCEPT VTSS) |
| 4 | P112 20TN/OR (VTSS) |
| 5 | P114 20TN/WT (VTSS) |
| 6 | P110 20LB/WT (HEATED MIRRORS) |
| 7 | P699 20LG/YL (HEATED MIRRORS) |
| 8 | Q21 16OR/WT |
| 9 | Q411 16OR/WT |
| 10 | Q612 16OR/DB |
| 11 | C17 20LB/WT (EXCEPT VTSS) |
| 12 | - |
