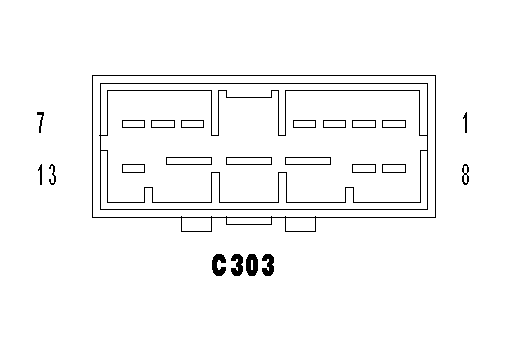

Driver Door Side Inline Connector End View (C303)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C303 - (DRIVER DOOR SIDE)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| 1 |
P74 20TN/OR (EXCEPT MEMORY MIRRORS) |
| 2 |
Z463 20BK/LB (EXCEPT MEMORY MIRRORS) |
| 3 |
X291 18GY/YL |
| 4 |
X201 18GY/VT |
| 5 |
P778 16LG/LB |
| 6 |
Q26 16OR/GY |
| 7 |
P76 20TN/LB (EXCEPT MEMORY MIRRORS) |
| 8 |
- |
| 9 |
- |
| 10 |
A929 16RD/DB |
| 11 |
Z911 16BK |
| 12 |
Q15 16OR/LB |
| 13 |
- |
