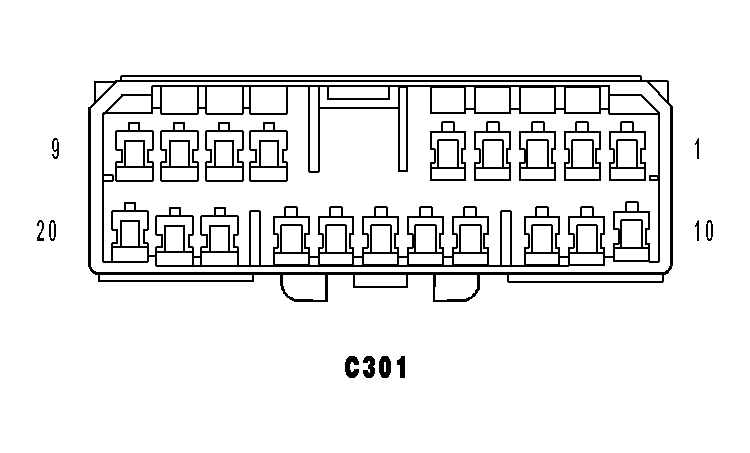

Driver Door Side Inline Connector End View (C301)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C301 - (DRIVER DOOR SIDE)
| CAV | CIRCUIT |
| 1 | A931 20RD/WT |
| 2 | G160 20VT/BR |
| 3 | Q16 16OR/TN |
| 4 | Q611 16OR/GY |
| 5 | G161 20VT/DG |
| 6 | P701 16LG/DG |
| 7 | C17 20LB/WT |
| 8 | P110 20LB/WT |
| 9 | P699 20LG/YL |
| 10 | Q412 16OR/LB |
| 11 | G75 20VT |
| 12 | P114 20TN/WT |
| 13 | P112 20TN/OR |
| 14 | G74 20VT/WT |
| 15 | Q411 16OR/WT |
| 16 | - |
| 17 | Q612 16OR/DB |
| 18 | D54 20WT |
| 19 | D55 20WT/OR |
| 20 | P72 20TN/GY |
