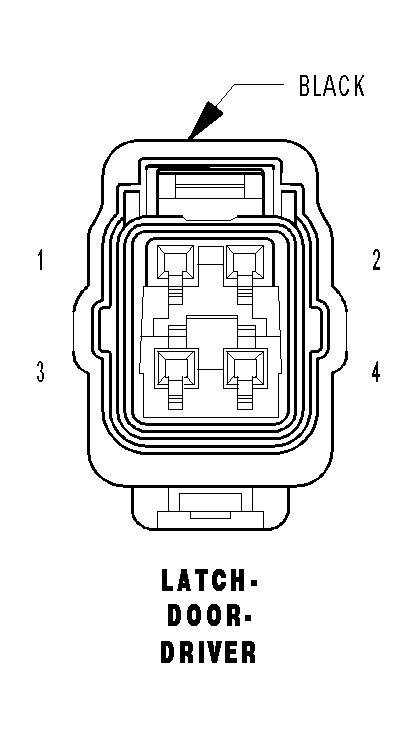

Driver Door Latch Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
LATCH-DOOR-DRIVER - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G75 20VT (LHD) |
LEFT FRONT DOOR AJAR SWITCH SENSE |
| 1 |
G74 20VT/WT (RHD) |
RIGHT FRONT DOOR AJAR SWITCH SENSE |
| 2 |
Z911 16BK |
GROUND |
| 3 |
P701 16LG/DG |
DRIVER DOOR UNLOCK RELAY OUTPUT |
| 4 |
P778 16LG/LB |
DOOR LOCK RELAY OUTPUT |
