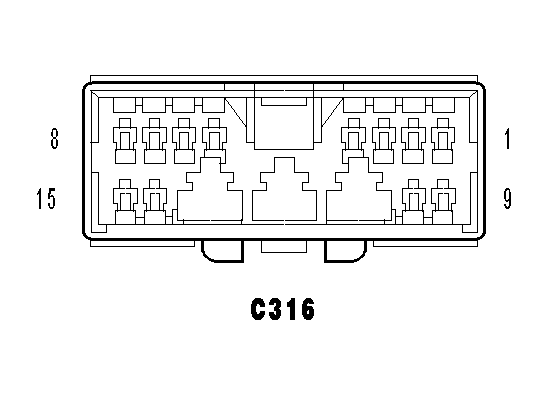

Driver Door Jumper Side Inline Connector End View (C316)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C316 - (DRIVER DOOR JUMPER SIDE)
| CAV | CIRCUIT |
| 1 | G75 20VT (VTSS) |
| 2 | D55 20WT/OR (VTSS) |
| 3 | D54 20WT (VTSS) |
| 4 | G160 20VT/BR (RHD HEATED MIRROR) |
| 5 | Q16 16OR/TN |
| 6 | Q11 16OR/LG |
| 7 | Q412 16OR/LB |
| 8 | Q15 16OR/LB |
| 9 | Q611 16OR/GY |
| 10 | Z463 20BK/LB (EXCEPT VTSS) |
| 11 | A929 16RD/DB |
| 12 | Q26 16OR/GY |
| 13 | Z911 16BK |
| 14 | A931 20RD/WT |
| 15 | G161 20VT/DG (LHD EXCEPT VTSS) |
| 16 | - |
| 17 | - |
| 18 | - |
