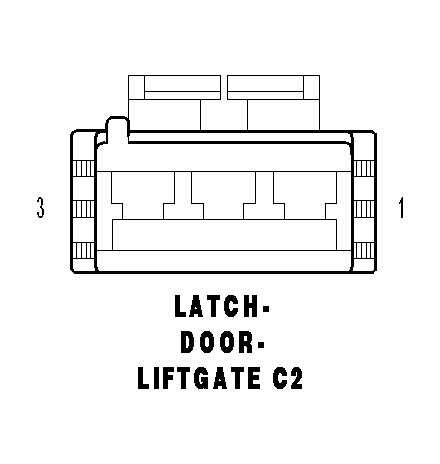

Door Liftgate Latch Connector End View (C2)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

LATCH-DOOR-LIFTGATE C2 - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P778 16LG/LB	DOOR LOCK RELAY OUTPUT
2	-	-
3	P792 16LG/TN	DOOR UNLOCK RELAY OUTPUT
