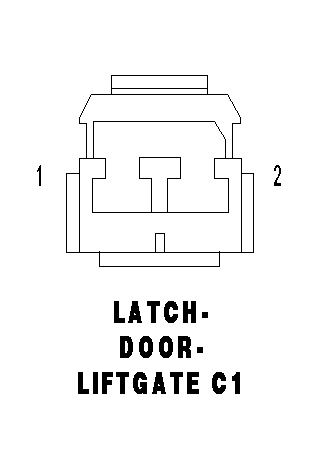

Door Liftgate Latch Connector End View (C1)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

LATCH-DOOR-LIFTGATE C1 - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z800 20BK	GROUND
2	G78 20VT/OR	LIFTGATE AJAR SWITCH SENSE
