Directional Control Valve B Dynamic Handling System Solenoid Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

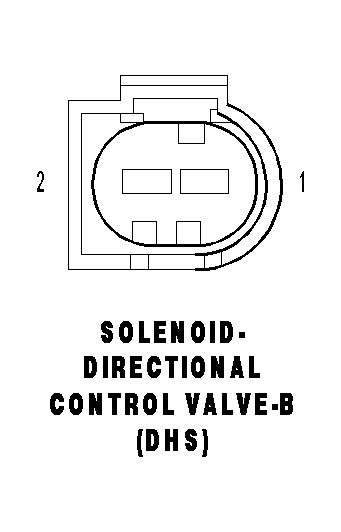

SOLENOID-DIRECTIONAL CONTROL VALVE-B (DHS) - 2 WAY

GCWK580366Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 S80 20GY/LB DIRECTIONAL SOLENOID SUPPLY
2 S72 20GY/BR DIRECTION VALVE-B SOLENOID CONTROL
