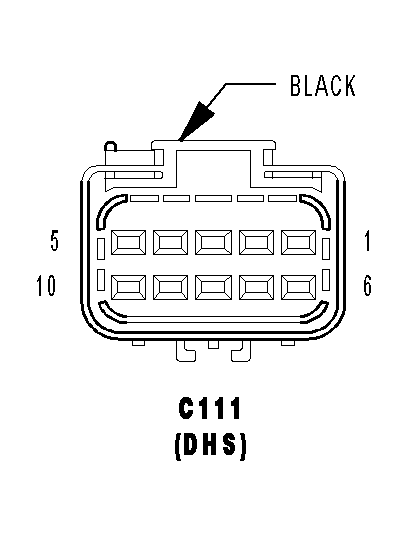

Cradle Front Side Inline (Dynamic Handling System) Connector End View (C111)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C111 (DHS) - (CRADLE FRONT SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	T306 20DG/DB
2	T301 20DG/YL
3	S72 20GY/BR
4	S61 20GY/DG
5	S80 20GY/LB
6	S950 20GY/TN
7	S62 20GY/TN
8	S50 20GY/WT
9	S60 20GY/YL
10	-
