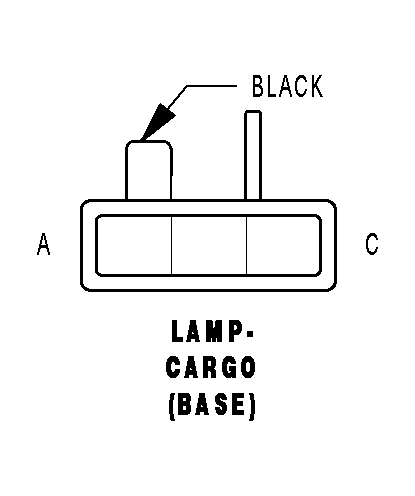

Cargo Lamp (Base) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

LAMP-CARGO (BASE) - BLACK 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	A931 20RD/WT	FUSED B(+)
B	M22 20YL/OR	COURTESY LAMPS DRIVER
C	-	-
