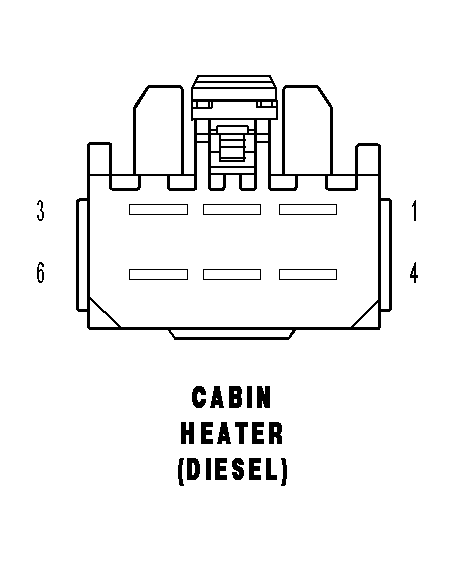

Cabin Heater (Diesel) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CABIN HEATER (DIESEL) - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
N115 10DB/YL |
PTC NO. 3 RELAY OUTPUT |
| 2 |
Z149 10BK/DG |
GROUND |
| 3 |
N113 10DB/OR |
PTC NO. 1 RELAY OUTPUT |
| 4 |
Z922 10BK |
GROUND |
| 5 |
N114 10DB/LB |
PTC NO. 2 RELAY OUTPUT |
| 6 |
- |
- |
