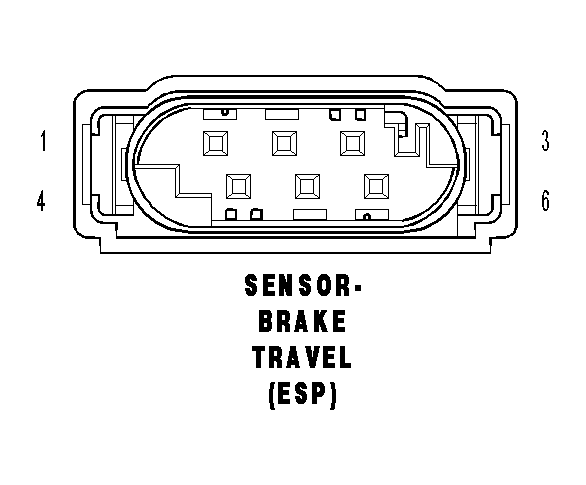

Brake Travel Sensor (Electronic Stability Program) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SENSOR-BRAKE TRAVEL (ESP) - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B135 18DG/LG |
BRAKE PEDAL FORCE SWITCH OPEN |
| 2 |
B134 18DG/YL |
BRAKE PEDAL FORCE SWITCH CLOSE |
| 3 |
B984 18DG/OR |
BRAKE PRESSURE SENSOR RETURN |
| 4 |
B131 18DG/VT |
ACTIVE BRAKE BOOSTER SOLENOID (+) |
| 5 |
B136 18DG/LB |
BRAKE PEDAL FORCE SWITCH SIGNAL |
| 6 |
- |
- |
