Brake Pressure Sensor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

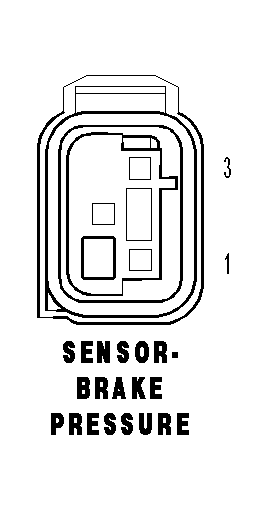

SENSOR-BRAKE PRESSURE - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B986 18DG/TN |
BRAKE PRESSURE SENSOR RETURN |
| 2 |
B84 18DG/DB |
BRAKE PRESSURE SENSOR SIGNAL |
| 3 |
B83 18DG/WT |
BRAKE PRESSURE SENSOR SUPPLY |
