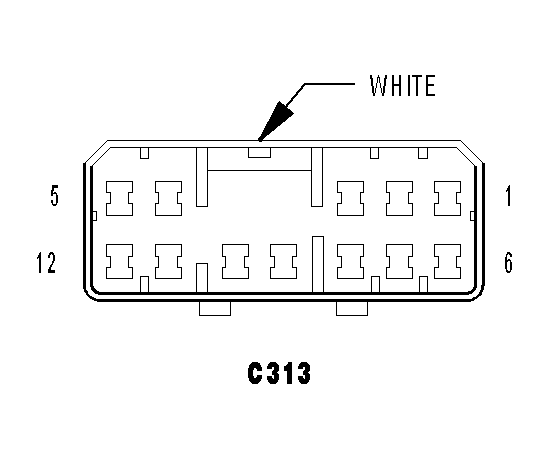

Body Side Inline Connector End View (C313)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C313 - WHITE (BODY SIDE)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| 1 |
S50 20GY/WT (DHS) |
| 2 |
S51 20GY/DB (DHS) |
| 3 |
S950 20GY/TN (DHS) |
| 4 |
P112 20TN/OR (MEMORY) |
| 5 |
P114 20TN/WT (MEMORY) |
| 6 |
L1 16WT/LG |
| 7 |
D54 20WT |
| 8 |
D55 20WT/OR |
| 9 |
A645 20RD/VT (EXPORT) |
| 10 |
D777 20WT/GY (PARK ASSIST) |
| 11 |
Z171 20GY/BK (PARK ASSIST) |
| 12 |
X777 20LG/GY (PARK ASSIST) |
