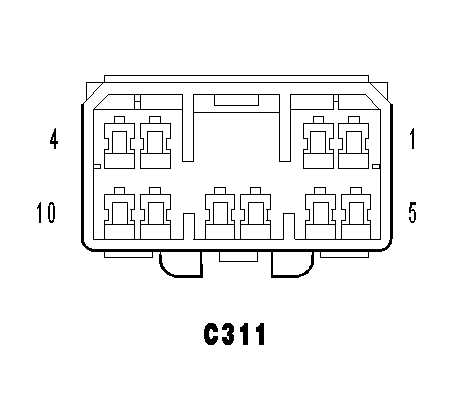

Body Side Inline Connector End View (C311)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C311 - (BODY SIDE)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| 1 |
Z915 18BK |
| 2 |
X955 20BK/GY |
| 3 |
X915 20GY/LG |
| 4 |
X515 20GY/OR |
| 5 |
X114 20GY/LB |
| 6 |
X555 20VT/OR |
| 7 |
D92 20WT |
| 8 |
D91 20WT/DB |
| 9 |
X524 20GY/YL |
| 10 |
X523 20GY/LB |
