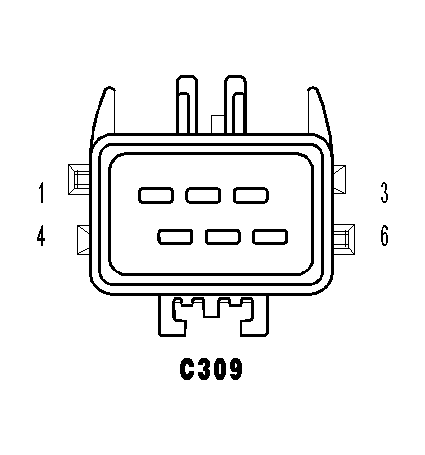

Body Side Inline Connector End View (C309)

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

C309 - (BODY SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	S950 20GY/TN
2	S51 20GY/DB
3	S50 20GY/WT
4	X777 20LG/GY (MEMORY)
5	D777 20WT/GY (MEMORY)
6	Z171 20GY/BK (MEMORY)
