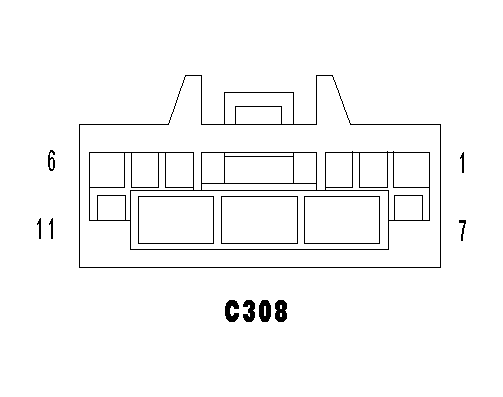

Body Side Inline Connector End View (C308)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C308 - (BODY SIDE)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| 1 |
Q612 16OR/DB |
| 3 |
G76 20VT/YL |
| 4 |
Z908 20BK |
| 5 |
X52 18GY/DB (EXCEPT PREMIUM AUDIO) |
| 5 |
X52 18GY/DB (PREMIUM AUDIO) |
| 6 |
X58 18GY/TN (EXCEPT PREMIUM AUDIO) |
| 6 |
X296 18LG/GY (PREMIUM AUDIO) |
| 7 |
- |
| 8 |
Q15 16OR/LB |
| 9 |
P778 16LG/LB |
| 10 |
P792 16LG/TN |
| 11 |
- |
