Body Side Inline Connector End View (C307)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

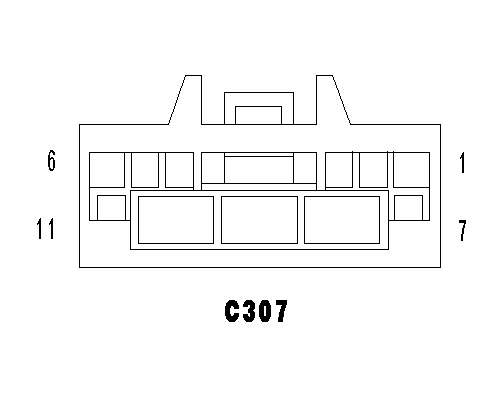

C307 - (BODY SIDE) 11 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| 1 |
Q611 16OR/GY |
| 2 |
Q411 16OR/WT |
| 3 |
G77 20VT/GY |
| 4 |
Z911 20BK |
| 5 |
X51 18DG/DB (EXCEPT PREMIUM AUDIO) |
| 5 |
X205 18GY/LG (PREMIUM AUDIO) |
| 6 |
X57 18DG/VT (EXCEPT PREMIUM AUDIO) |
| 6 |
X295 18GY/DG (PREMIUM AUDIO) |
| 7 |
- |
| 8 |
Q15 16OR/LB |
| 9 |
P778 16LG/LB |
| 10 |
P792 16LG/TN |
| 11 |
- |
