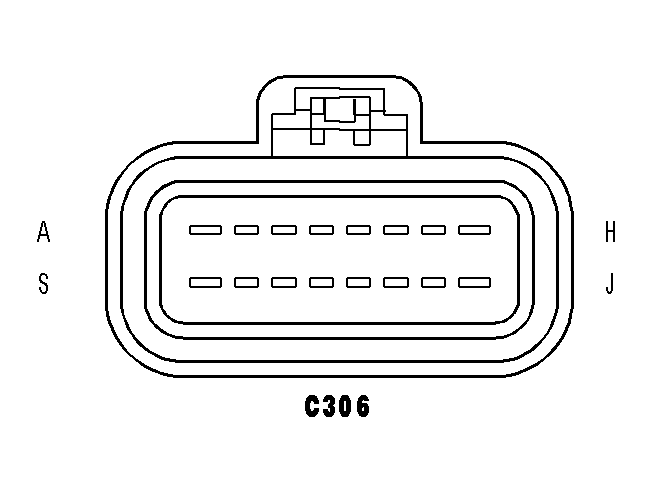

Body Side Inline Connector End View (C306)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C306 - (BODY SIDE)
| CAV | CIRCUIT |
| A | A33 16RD/YL |
| B | P205 16LG/DB (LHD MEMORY) |
| C | G12 20VT/BR (LHD MEMORY) |
| D | P206 16LG/TN (LHD MEMORY) |
| E | P187 16LG/BR (LHD HEATED SEATS) |
| F | G912 20VT/WT (LHD MEMORY) |
| G | G11 20VT/TN (LHD MEMORY) |
| H | Z911 14BK |
| J | P188 16LG/VT (RHD HEATED SEATS) |
| K | D54 20WT (MEMORY) |
| L | D55 20WT/OR (MEMORY/HEATED SEATS) |
| M | - |
| N | Q102 20OR/DB (LHD MEMORY) |
| P | Q103 20OR/LG (LHD MEMORY) |
| R | Q101 20OR/LB (LHD MEMORY) |
| S | Z917 14BK (RHD HEATED SEATS) |
