Body Side Inline Connector End View (C305)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

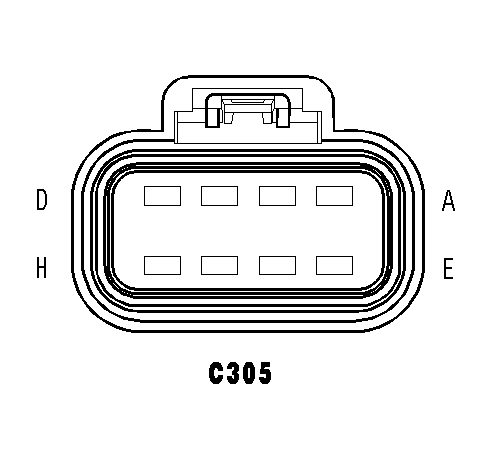

C305 - (BODY SIDE)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| A |
Z917 14BK (LHD EXCEPT EXPORT 3.7L) |
| B |
Z909 14BK |
| C |
P187 16LG/BR (LHD EXCEPT EXPORT 3.7L) |
| D |
A33 16BK/RD |
| E |
D54 20WT (LHD EXCEPT EXPORT 3.7L) |
| F |
D55 20WT/OR (LHD EXCEPT EXPORT 3.7L) |
| G |
P188 16LG/VT (RHD MEMORY SEAT) |
| H |
- |
