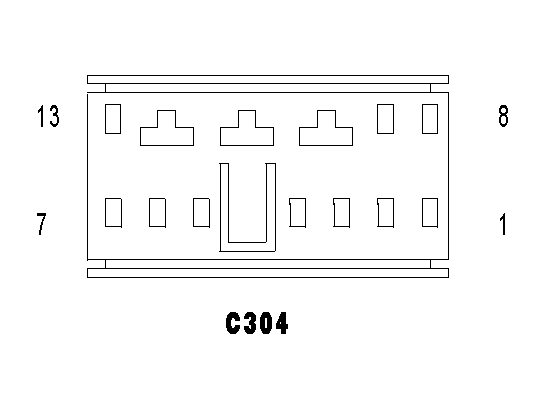

Body Side Inline Connector End View (C304)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C304 - (BODY SIDE)
| CAV | CIRCUIT |
| 1 | A931 20RD/WT (MEMORY) |
| 2 | Z463 20BK/LB (EXCEPT MEMORY MIRRORS) |
| 3 | X56 18GY/BR (EXCEPT PREMIUM AUDIO) |
| 3 | X292 18DG/YL (PREMIUM AUDIO) |
| 4 | X54 18GY (EXCEPT PREMIUM AUDIO) |
| 4 | X202 18DG/VT (PREMIUM AUDIO) |
| 5 | P72 20TN/GY (EXCEPT MEMORY MIRRORS) |
| 6 | - |
| 7 | P74 20TN/OR (EXCEPT MEMORY MIRRORS) |
| 8 | D54 20WT (MEMORY MIRRORS) |
| 9 | D55 20WT/OR (MEMORY MIRRORS) |
| 10 | A929 16RD/LG |
| 11 | Q15 16OR/LB |
| 12 | - |
| 13 | - |
