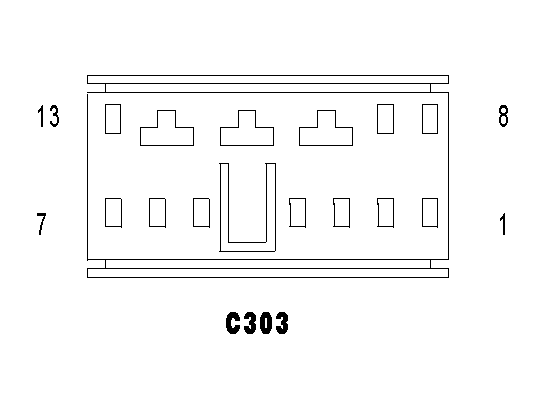

Body Side Inline Connector End View (C303)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
C303 - (BODY SIDE)
| CAV | CIRCUIT |
| 1 | P74 20TN/OR (MEMORY MIRRORS) |
| 2 | Z463 20BK/LB (MEMORY MIRRORS) |
| 3 | X55 18DG/BR (EXCEPT PREMIUM AUDIO) |
| 3 | X291 18GY/YL (PREMIUM AUDIO) |
| 4 | X53 18DG (EXCEPT PREMIUM AUDIO) |
| 4 | X201 18GY/VT (PREMIUM AUDIO) |
| 5 | P778 16LG/LB |
| 6 | Q26 16OR/GY |
| 7 | P76 20TN/LB (EXCEPT PREMIUM AUDIO) |
| 8 | - |
| 9 | - |
| 10 | A929 16RD/DB |
| 11 | Z911 16BK |
| 12 | Q15 16OR/LB |
| 13 | - |
